Quality System

Quality at NAGATOYO is not an inspection stage — it is a Japanese-style production discipline applied from steel selection to final shot.

5 µmConnector Mould Precision
0.01 mmPress Filter Precision
300K+Shots Flash Control
3M+Mould Life Engineered
100%Full-Dimension Inspection
3ISO Certifications
OUR QUALITY PROMISE

Precision You Can Measure

Built into the process, not bolted on at the end

Every mould we ship is checked against full-dimension inspection reports. Every production batch follows a first-article qualification, in-line QC checkpoints and traceable inspection records.

We manage the details that decide part quality: steel grade and hardness for the application, gate and cooling layout for dimensional stability, and daily 5S + lean management boards that keep the shop floor disciplined.

Full-Dimension Inspection First-Article Approval Traceable Records Steel Hardness Control 5S + Lean Management

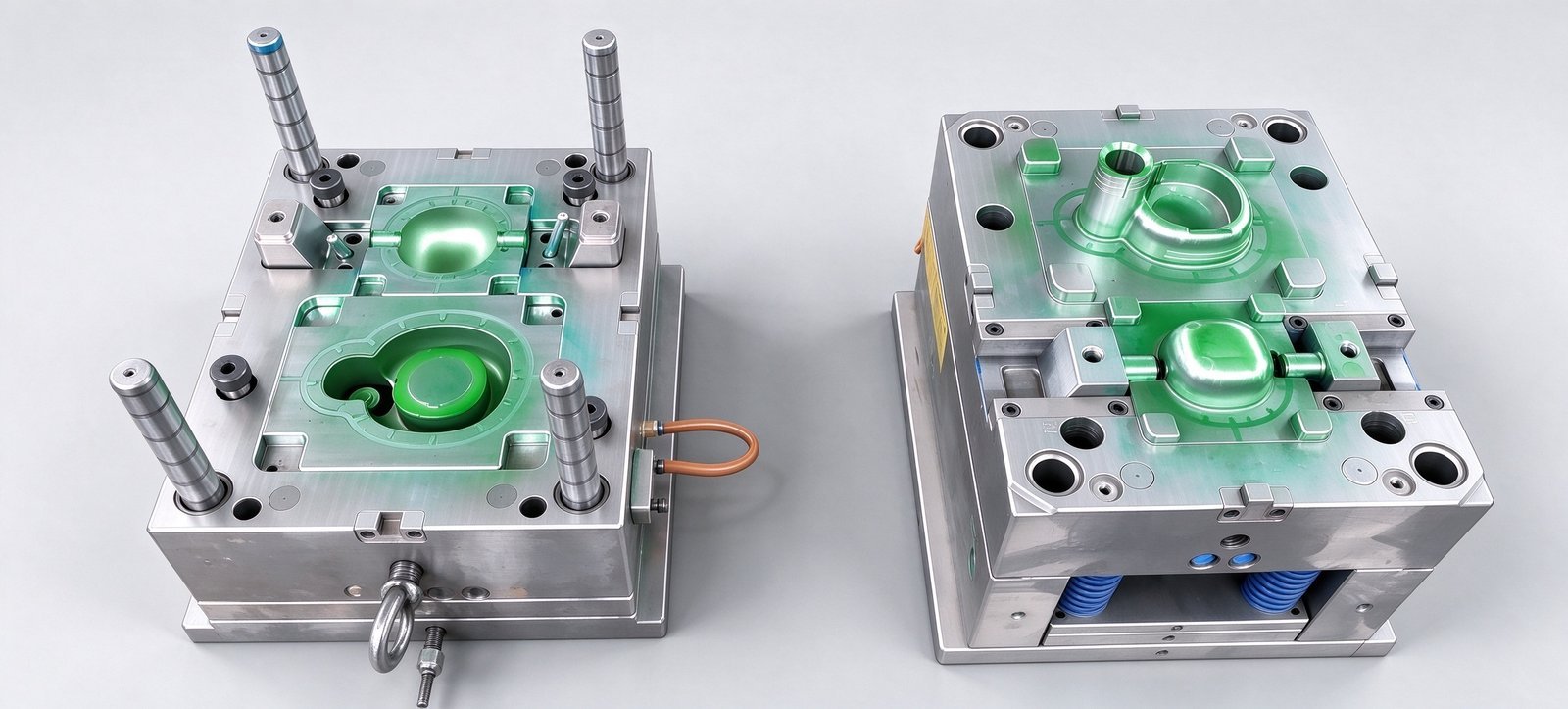

Finished precision moulds
FINISHED MOULD · FULL INSPECTION
QUALITY CONTROLS

How We Hold Tolerance

Mould Precision Standards

  • Automotive connectors — machining held within 5 µm, with oversized mould bases for long-term dimensional stability.
  • Press filters & structural parts — high-hardness quenched moulds, precision within 0.01 mm.
  • Transmission suction filters — full-dimension inspection; moving parts in 1.2344 at HRC52.

Long-Run Stability

  • Flash controlled to 300,000+ shots on mature programmes.
  • Mould life engineered from 300,000 to 3,000,000+ shots by application.
  • Fast-release steels (NAK80 / 718HH) for urgent tooling; SKD61 HRC52 for long runs.
  • PA66-GF30+ and PC-alloy experience for demanding structural and energy parts.
CERTIFIED SYSTEMS

Management System Certifications

Independently audited quality, environment and occupational health systems.

ISO 9001 — Quality Management

Certified quality management system governing design, mould manufacturing and injection production.

ISO 14001 — Environmental Management

Certified environmental management covering energy use, waste and sustainable production.

ISO 45001 — Occupational Health & Safety

Certified occupational health and safety management across both factories.

Intellectual Property Management

Certified IP management system protecting 10 granted and 12 accepted patents.

Ask About Our Quality Data

Request inspection reports, material certificates or audit records — we share them openly.
